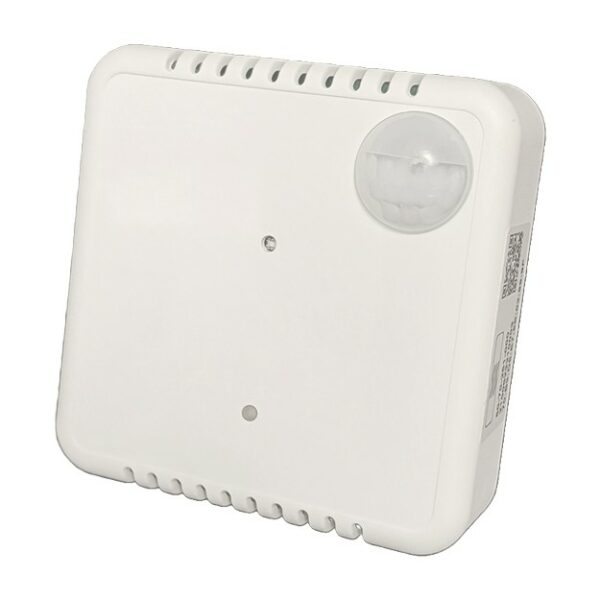

VAQA’O Multi Lite
Description
The VAQA’O Multi Lite sensor measures temperature, relative humidity, carbon dioxide (CO₂) concentration in the ambient air, VOC index, brightness, and detects presence in a room in a building, apartment, or house. VAQA’O Multi Lite monitors indoor air quality (IAQ) and presence to meet your energy efficiency goals.
Data is transmitted via a public or private LoRaWAN® radio network.
Also available:
Caractéristiques
-
-
- LoRaWAN®, Class A
- Easy to install and use
- Differential data compression
- > 3 years of battery life
- Measurement ranges/accuracy:
– Temperature: +0°C to +55°C / ± 0.2°C
– Humidity: 0% to 100% RH / ± 2%
– CO2: 0-5000ppm/ ± 100ppm
– VOC: index of 0 – 500 / ±5
– Brightness: 1 Lux to 65 kLux
– Presence: detection up to 12 meters - Indicator lights (LED): network and IAQ combination
- Buzzer for configurable audible alarms
- Local or remote CO2 calibration
-
Sensor use cases:
-
-
- Use case: monitoring indoor air quality in establishments open to minors, both in the workplace and at home.Cas d’usage : surveillance de la Qualité de l’Air Intérieur dans les établissements recevant du public mineur, sur le lieu de travail comme au domicile.
- Supervision of heating, ventilation, and air conditioning systems.
- Energy optimization of buildings (residential, commercial).
- Monitoring of indoor air quality (IAQ) in public buildings (schools, nurseries, hospitals, etc.).
-
